PINSETTER troubleshooting

INTERACTIVE FLOW CHARTS

GS® Error Codes

Please click anywhere you see the red “play” button to watch a help video. Please note that interactive features may not be available on mobile devices without Adobe.

BALL RETURN - A2

BALL WILL NOT RETURN — BALL WILL NOT RETURN

DECK - A2

CONSTANT MOVING DECK JAMS — CONSTANT MOVING
DECK JAMS

PINS WOBBLE OR FALL WHEN SETTING A FULL RACK — PINS WOBBLE OR FALL WHEN SETTING A FULL RACK

PINS WOBBLE WHEN RESPOTTED — PINS WOBBLE WHEN
RESPOTTED

SCISSORS FAIL TO OPEN OR CLOSE PROPERLY — SCISSORS FAIL TO OPEN OR CLOSE PROPERLY

GEARBOX - A2

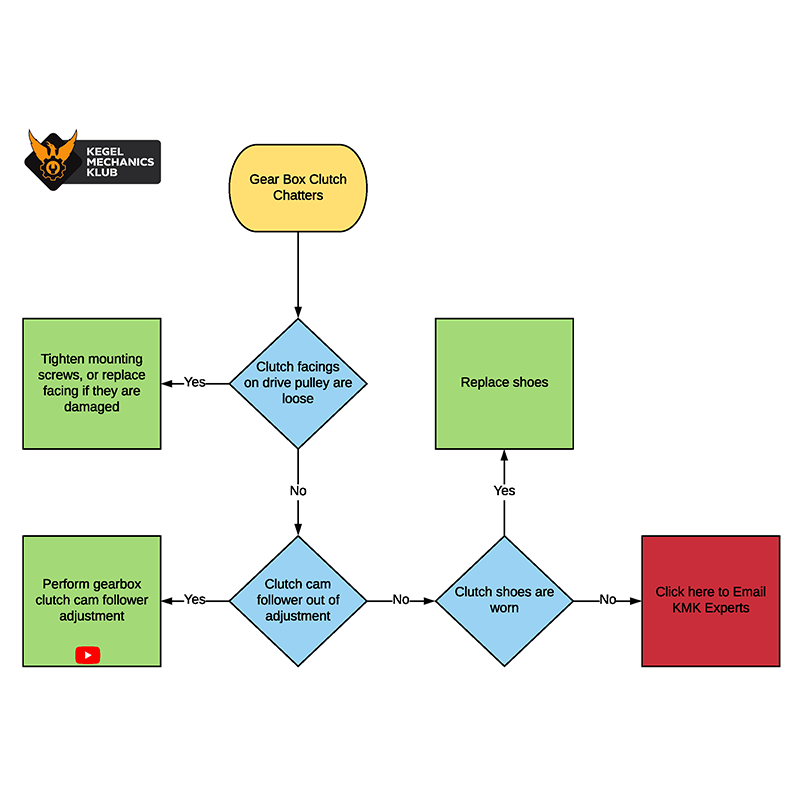

GEARBOX CLUTCH CHATTERS — GEARBOX CLUTCH CHATTERS

GEARBOX CLUTCH DISENGAGES AT 180 WHEN DECK IS FULL — GEARBOX CLUTCH DISENGAGES AT 180 WHEN DECK IS FULL

GEARBOX CLUTCH DOES NOT DISENGAGE AT 180 WHEN DECK IS EMPTY — GEARBOX CLUTCH DOES NOT DISENGAGE AT 180 WHEN DECK IS EMPTY

PINSETTER CYCLES — PINSETTER CYCLES

PINSETTER FAILS TO CYCLE — PINSETTER FAILS TO CYCLE

PINSETTER HAS NO DELAY ON FIRST BALL — PINSETTER HAS NO DELAY
ON FIRST BALL

PINSETTER USES TIME DELAY ON SECOND BALL — PINSETTER USES TIME DELAY
ON SECOND BALL

RAKE - A2

RAKE BOARD NOT STAYING UP AT 0 — RAKE BOARD NOT STAYING UP AT 0

RAKE FAILS TO SWEEP — RAKE FAILS TO SWEEP

RAKE RELEASES DURING SWEEP MOTION — RAKE RELEASES DURING
SWEEP MOTION

RAKE SWEEPS OUT OF TIME — RAKE SWEEPS OUT OF TIME

TURRET - A2

PINS DO NOT RELEASE FROM TURRET PROPERLY — PINS DO NOT RELEASE FROM TURRET PROPERLY

PINS DROP WHEN DECK IS FULL — PINS DROP WHEN
DECK IS FULL

SPIDER FAILS TO LOCK — SPIDER FAILS TO LOCK

TURRET FAILED TO INDEX — TURRET FAILED TO INDEX

TURRET FAILS TO INDEX AFTER 5 PIN — TURRET FAILS TO INDEX AFTER 5 PIN

TURRET MULTIPLE INDEXES — TURRET MULTIPLE INDEXES

BALL RETURN-GS®

BALL DOES NOT RETURN — BALL DOES NOT RETURN

DISTRIBUTOR - gs®

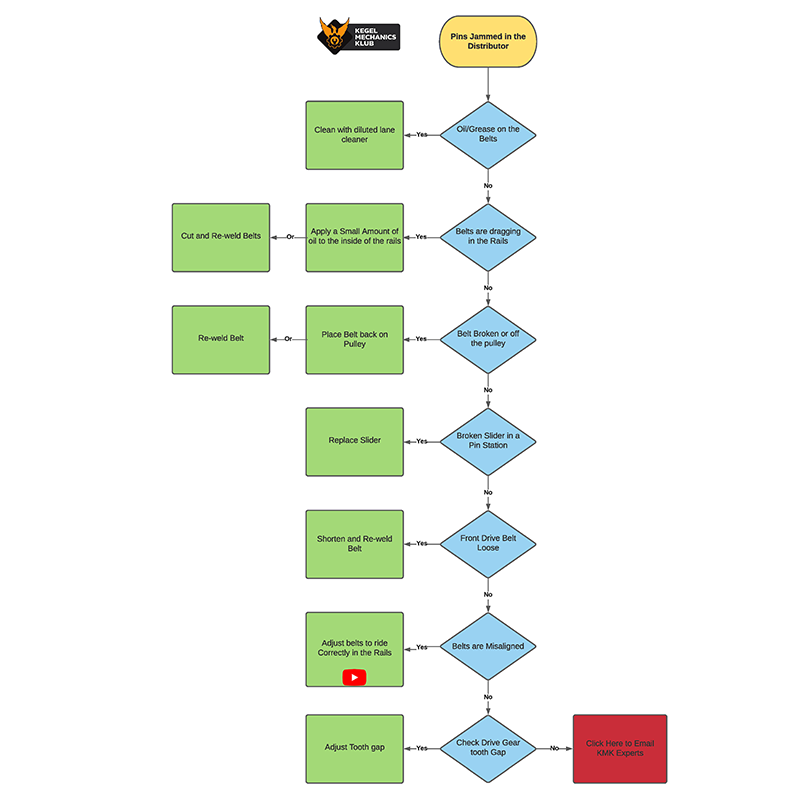

PINS JAMMED IN DISTRIBUTOR — PINS JAMMED IN DISTRIBUTOR

ELECTRICAL - GS®

NO MOTORS WILL RUN — NO MOTORS WILL RUN

PINSETTER CYCLES CONTINUOUSLY — PINSETTER CYCLES CONTINUOUSLY

PINSETTER CYCLES INDEPENDENTLY — PINSETTER CYCLES INDEPENDENTLY

SINGLE MOTOR WILL NOT OPERATE — SINGLE MOTOR WILL NOT OPERATE

SINGLE PINSETTER WILL NOT TURN ON — SINGLE PINSETTER WILL NOT TURN ON

ELEVATOR - gs®

PINSETTER RUNS FOR 6 SECONDS THEN SHUTS OFF — PINSETTER RUNS FOR 6 SECONDS THEN SHUTS OFF

SHARK SWITCH NOT FLIPPING — SHARK SWITCH NOT FLIPPING

SWEEP - gs®

PINSETTER FAILS TO SWEEP — PINSETTER FAILS TO SWEEP

TABLE SETS PINS BUT SWEEP STAYS DOWN — TABLE SETS PINS BUT SWEEP STAYS DOWN

TABLE - gs®

INCORRECT SCORE — INCORRECT SCORE

TRANSPORT BAND - gs®

BALL DOOR BLOCKED BY PINS — BALL DOOR BLOCKED BY PINS

Error Codes - GS®

01-10/ PIN # LD — 01-10/ PIN # LD

50-59/ DETECT PIN # — 50-59/ DETECT PIN #

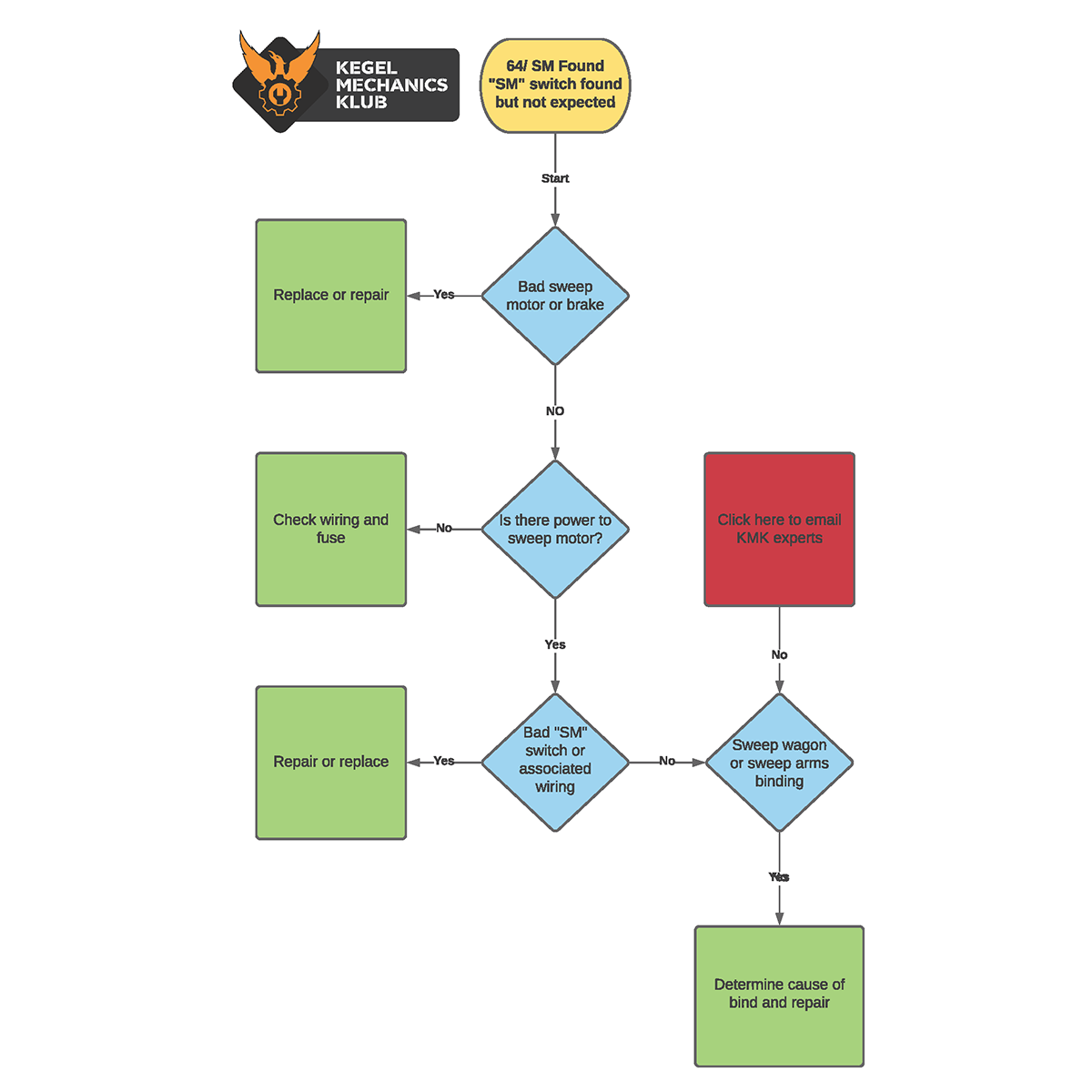

60/ “A” FOUND — 60/ “A” FOUND

61/ “B” FOUND — 61/ “B” FOUND

62/ ”C” FOUND — 62/ ”C” FOUND

63/ ”D” FOUND — 63/ ”D” FOUND

64 SM FOUND — 64 SM FOUND

65/ “G” FOUND — 65/ “G” FOUND

66/ ST FOUND — 66/ ST FOUND

67/ OOR FOUND — 67/ OOR FOUND

70/ “A” NTFND — 70/ “A” NTFND

71/ “B” NTFND — 71/ “B” NTFND

72/ “C” NTFND — 72/ “C” NTFND

73/ “D” NTFND — 73/ “D” NTFND

74/ SM NTFND — 74/ SM NTFND

75/ “G” NTFND — 75/ “G” NTFND

76/ST NFND — 76/ST NFND

BA

EJ ELEV JAM — EJ ELEV JAM

EL/ PIN CNT — EL/ PIN CNT

ERROR CODES 90-95/ INVLD 0-5 — ERROR CODES 90-95
/ INVLD 0-5

J1/ TS1 JAM — J1/ TS1 JAM

J2/ TS2 JAM — J2/ TS2 JAM

PO/ PIN OOR — PO/ PIN OOR
